Note: Most of our products are shipped quickly. Some items are not in stock and are made to order, which requires factory scheduling and may cause a shipping delay. However, for the vast majority of products, the delivery time is much shorter than expected, and most of customers who place orders will usually receive their goods ahead of the scheduled timeframe.
（Basic satellite products and customization needs, prices are for reference, launch and operation are calculated separately, you can contact customer service for details)

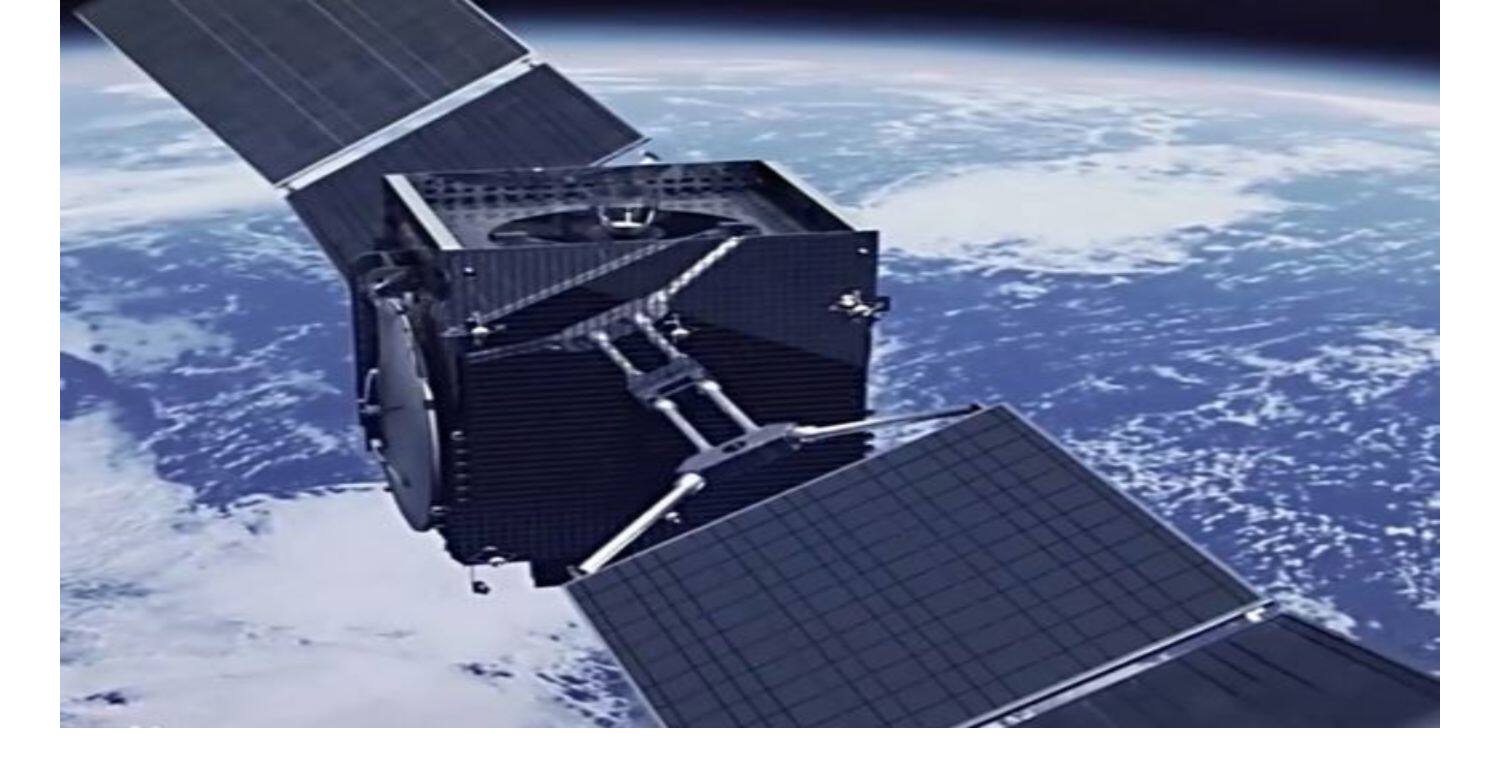

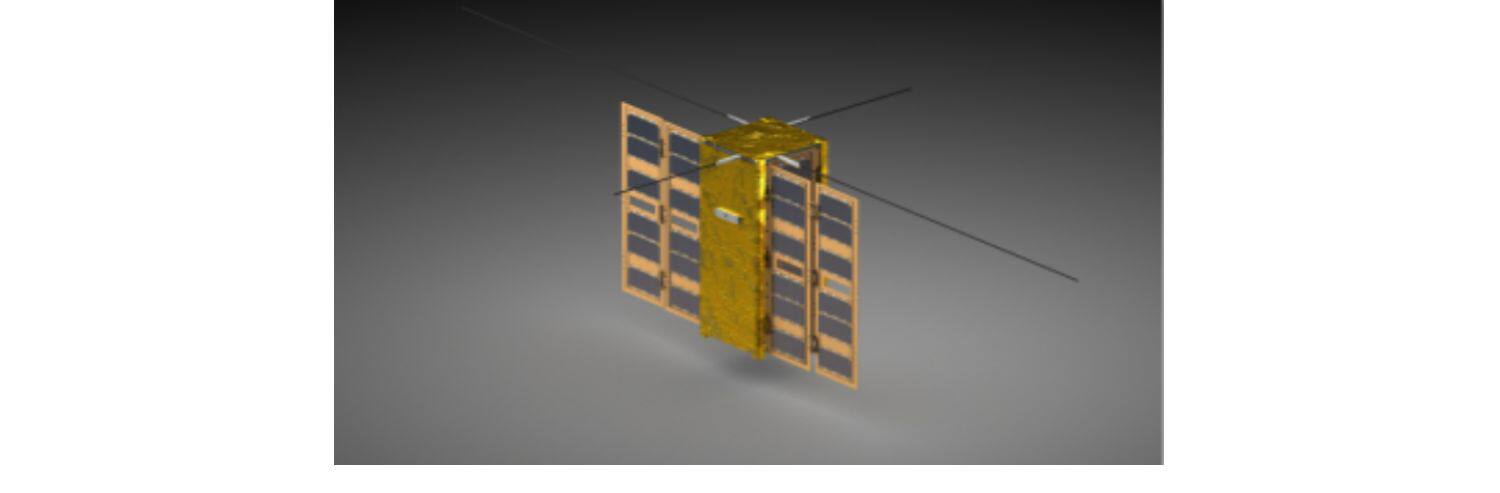

The following satellite platformsZG3Uperformance introduction
- Zero weight space has independent intellectual property rightsZG3U-1The satellite platform was also successfully applied for the first time in “Fengma Niu No. 1 ”Satellites, which allows zero-gravity spaceZG3U-1A solid step has been taken in the commercialization of satellite platforms.
- Based on the experience of the technical team over the past few decades, zero-weight space has the independent research and development capabilities of almost all components and systems in CubeSats (a small satellite that adopts international common standards). Including a series of solutions such as on-board computer, power management, load management, attitude control, and communication systems (measurement and control, data transmission, inter-satellite communication).
- In the field of attitude control, zero-weight space will provide a more advanced electric propulsion solution, which can effectively reduce the load on satellites and greatly improve the safety during launch and operation. In the communication system plan, considering the gradual popularization of constellation networking, zero-duplication space also adds inter-satellite communication functions.
production products ginseng number

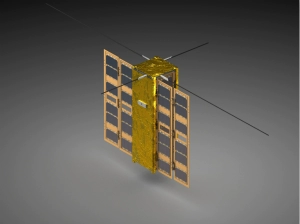

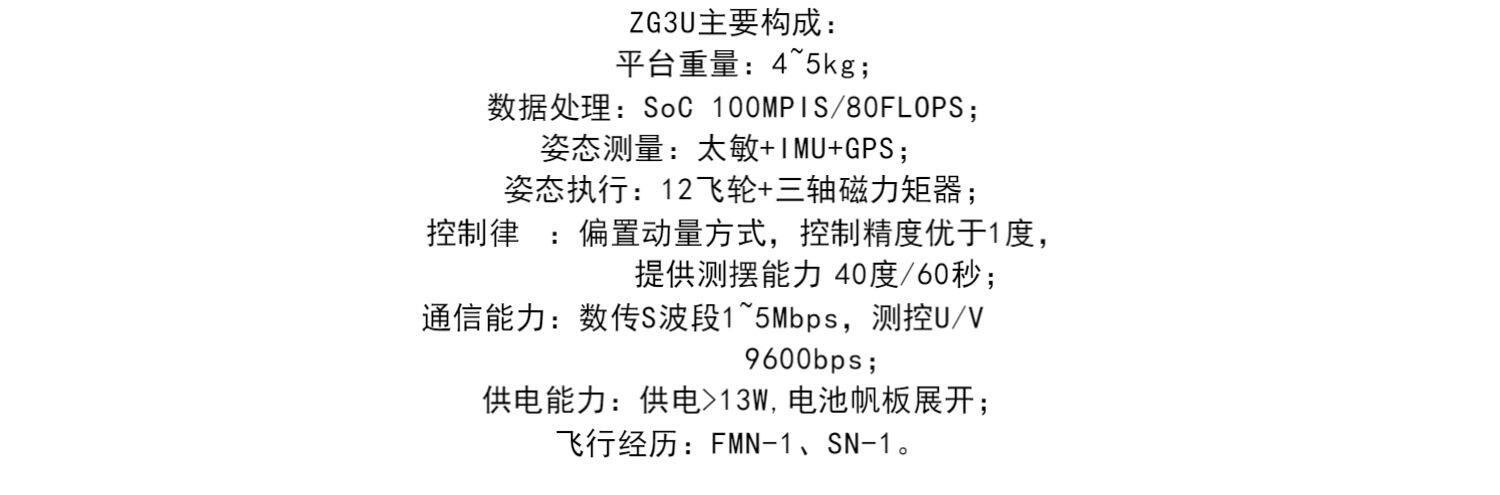

ZG3UMain components:
Platform weight:4~5kg；
Data processing:SoC 100MPIS/80FLOPS；
Attitude measurement: too sensitive+IMU+GPS；
Posture execution:12flywheel+Three-axis magnetic torquer;
control law ：Bias momentum method, control accuracy is better than1Degree,
Provide pendulum measurement capabilities 40Degree/60Seconds;
Communication capabilities: digital transmissionSband1~5Mbps，measurement and controlU/V
9600bps；
Power supply capacity: power supply>13W,The battery sail unfolds;
Flight experience:FMN-1、SN-1。
